Inverter 12V 500VA IEC

R2,680.00
Tax included

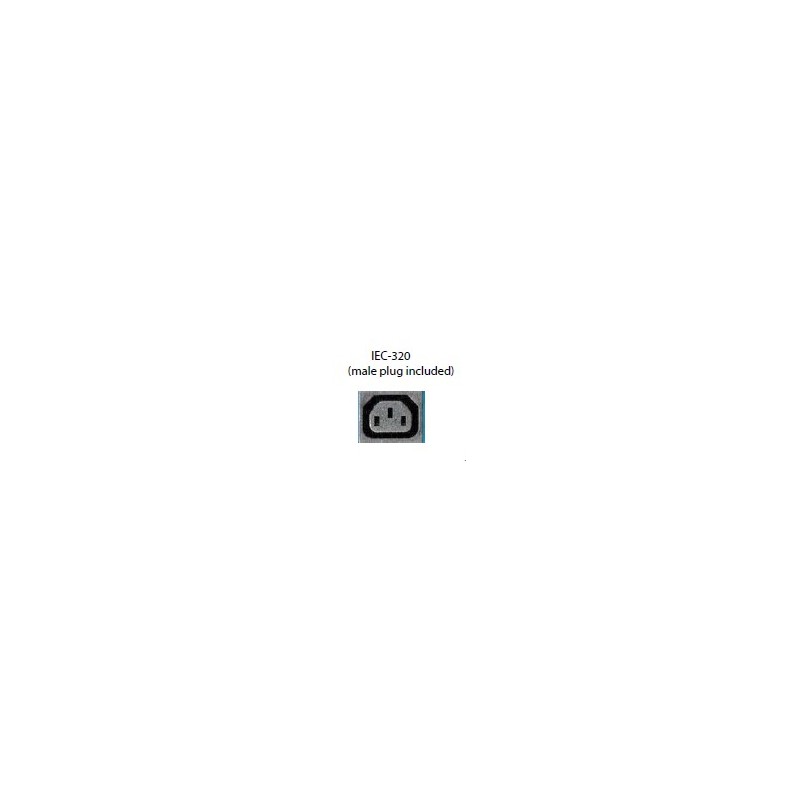

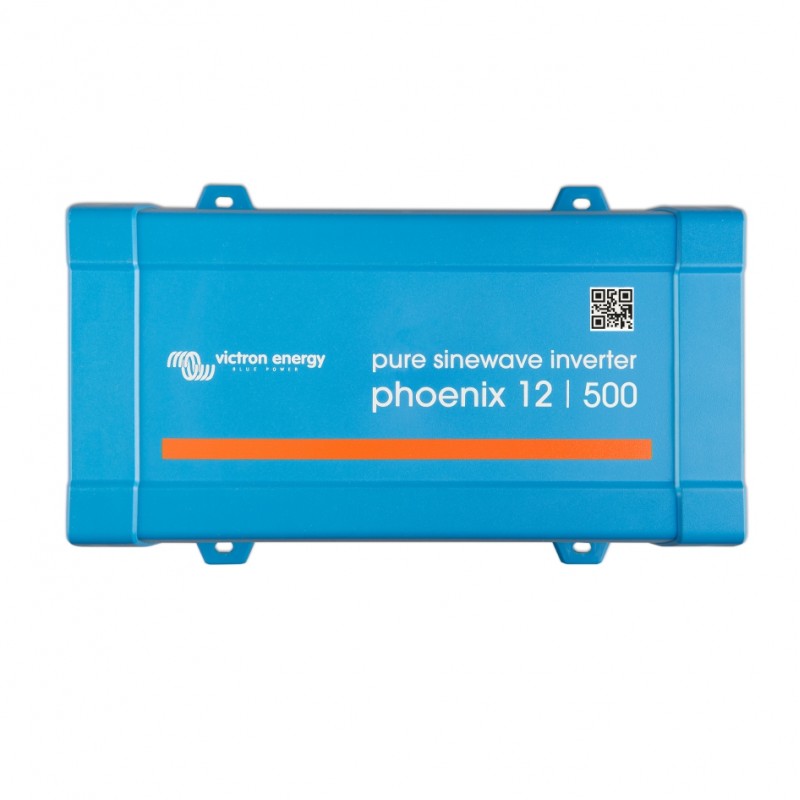

Victron Phoenix 12V 500VA Inverter supplied with an IEC socket. Male socket included.

Will ship 4-5 working days from order. Call or email to confirm

VE.Direct communication port

The VE.Direct port can be connected to:

• A computer (VE.Direct to USB interface cable needed)

• Apple and Android smartphones, tablets, MacBook’s and other devices (VE.Direct Bluetooth Smart dongle needed)

Fully configurable:

• Low battery voltage alarm trip and reset levels

• Low battery voltage cut-off and restart levels

• Dynamic cut-off: load dependent cut-off level

• Output voltage 210 - 245V

• Frequency 50 Hz or 60 Hz

• ECO mode on/off and ECO mode sense level

Monitoring:

• In- and output voltage, % load and alarms

Proven reliability

The full bridge plus toroidal transformer topology has proven its reliability over many years.

The inverters are short circuit proof and protected against overheating, whether due to overload or

high ambient temperature.

High start-up power

Needed to start loads such as power converters for LED lamps, halogen lamps or electric tools.

ECO mode

When in ECO mode, the inverter will switch to standby when the load decreases below a preset

value (min load: 15W). Once in standby the inverter will switch on for a short period (adjustable,

default: every 2,5 seconds). If the load exceeds a preset level, the inverter will remain on.

Remote on/off

A remote on/off switch can be connected to a two-pole connector, or between battery plus and the

left-hand contact of the two-pole connector

LVI-PH120500IEC

Data sheet

Height (mm)
86
Length (mm)
172
Width (mm)
275

Download

Datasheet Phoenix Inverter

Datasheet for the Phoenix 250VA - 1200VA inverter range

Download (395.68k)
