Inverter 12V 800VA IEC

R3,782.61

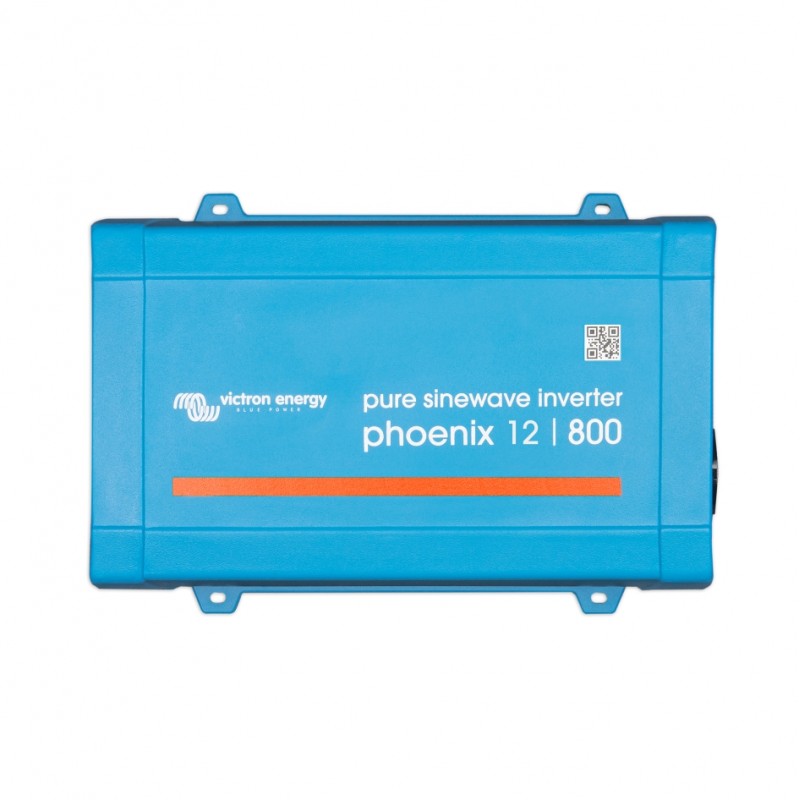

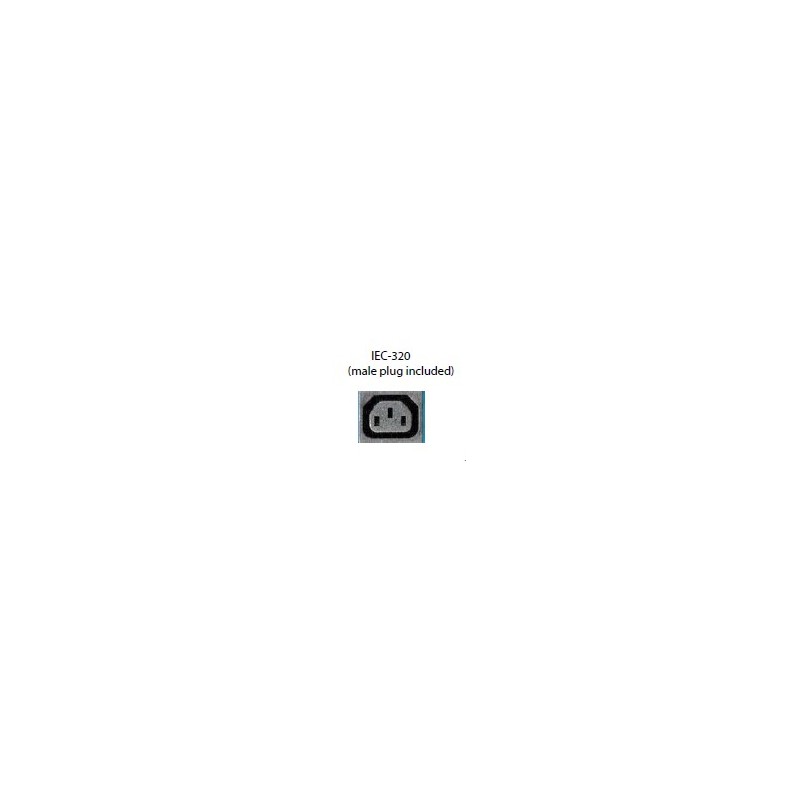

Victron Phoenix 12V 800VA Inverter supplied with an IEC socket. Includes a male plug that can be wired to an extension cable (not supplied)

3 Available to Ship

VE.Direct communication port

The VE.Direct port can be connected to:

• A computer (VE.Direct to USB interface cable needed)

• Apple and Android smartphones, tablets, MacBook’s and other devices (VE.Direct Bluetooth Smart dongle needed)

Fully configurable:

• Low battery voltage alarm trip and reset levels

• Low battery voltage cut-off and restart levels

• Dynamic cut-off: load dependent cut-off level

• Output voltage 210 - 245V

• Frequency 50 Hz or 60 Hz

• ECO mode on/off and ECO mode sense level

Monitoring:

• In- and output voltage, % load and alarms

Proven reliability

The full bridge plus toroidal transformer topology has proven its reliability over many years.

The inverters are short circuit proof and protected against overheating, whether due to overload or

high ambient temperature.

High start-up power

LVI-PH120800IEC

Data sheet

Height (mm)
105
Length (mm)
216
Width (mm)
305

Download

Datasheet Phoenix Inverter

Datasheet for the Phoenix 250VA - 1200VA inverter range

Download (395.68k)
